Product Summary

The lq104x2lx11 is a TFT-LCD Module.

Parametrics

lq104x2lx11 absolute maximum ratings: (1)+3.3V/+5.0V supply voltage, VCC: 0 to 6.0V when Ta=25℃; (2)input voltage, VI1: -0.3 to Vcc+0.3V when Ta=25℃, RXINi-/+(i=0,1,2); -0.3 to 3.3V when RXCLK IN-/+; VI2: -0.3 to 3.3V when Ta=25℃; (3)lamp input voltage, VHIGH: 1800Vrms; (4)storage temperature, Tstg: -30 to 80℃; (5)operating temperature, Topa: -30 to 80℃.

Features

lq104x2lx11 features: (1)LCD, TFT, 10.4" SVGA LVDS; (2)LCD Display Type: TFT; (3)Pixel Pitch (H × W): 0.264mm x 0.264mm; (4)Display Mode: Transmissive; (5)Interface Type: LVDS; (6)Viewing Area (H × W): 158.4mm x 211.2mm; (7)Supply Voltage: 5V; (8)Backlight Type: LED; (9)Display Area Height: 158.4mm; (10)Display Area Width: 211.2mm; (11)External Depth: 13.7mm; (12)External Length / Height: 179.4mm; (13)External Width: 246.5mm; (14)Illumination Colour: White; (15)Operating Temperature Range: -30 to +80℃; (16)Resolution: 800 × 600; (17)Screen Size: 10.4".

Diagrams

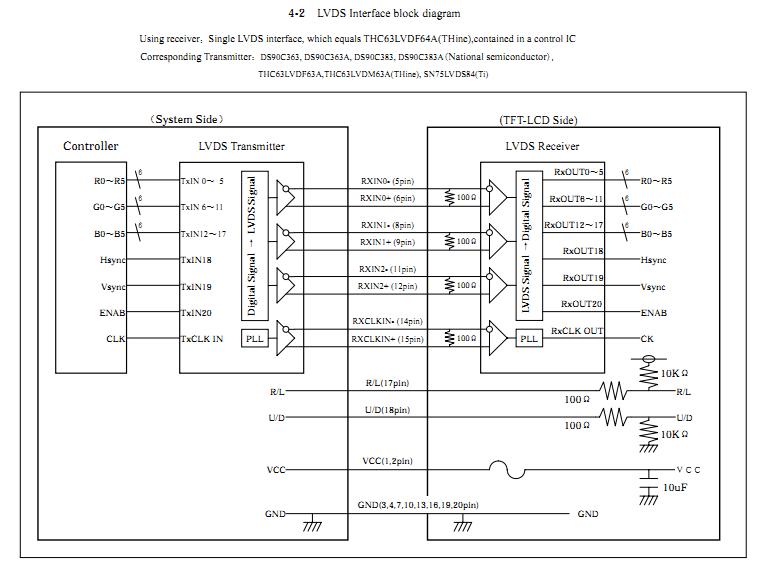

lq104x2lx11 pin connection
