Product Summary

The g6l-1p-24v is a Low Signal Relay. The applications of the g6l-1p-24v include Peripherals of MODEM/PC, Telephones, Office automation machines, Audio-visual products, Communications equipment, Measurement devices, Amusement equipment, Security equipment.

Parametrics

g6l-1p-24v absolute maximum ratings: (1)Contact mechanism: Single crossbar; (2)Rated load: 0.3A at 125 VAC, 1A at 24 VDC; (3)Carry current: 1A; (4)Max. operating voltage: 125 VAC, 60 VDC; (5)Max. operating current: 1A; (6)Min. permissible load - P level (See note): 1mA at 5 VDC; (7)Pick-up voltage: 75% max. of rated voltage; (8)Dropout voltage: 10% min. of rated voltage; (9)Maximum voltage: 150% of rated voltage ; (10)Power consumption: Approx. 180mW.

Features

g6l-1p-24v features: (1)Uses 20% less mounting area and 67% less volume in comparison with the G5V-1 relay; (2)Measures just 7.0 (W)×10.6 (L)×4.5 (H) mm for surface-mount or 4.1 (H) for through-hole; (3)High dielectric strength: 1,000 VAC between coil and contacts and 750 VAC between contacts of the same polarity; (4)Conforms to FCC Part 68; (5)UL recognized / CSA certified; (6)RoHS Compliant - Use of lead completely eliminated.

Diagrams

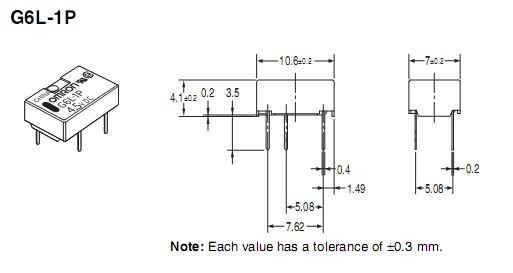

g6l-1p-24v dimension
