Product Summary

The g6l-1p-5vdc is a low signal relay. Applications are (1)Peripherals of MODEM/PC; (2)Telephones; (3)Office automation machines; (4)Audio-visual products; (5)Communications equipment; (6)Measurement devices; (7)Amusement equipment; (8)Security equipment.

Parametrics

g6l-1p-5vdc absolute maximum ratings: (1)Rated load: 0.3 A at 125 VAC, 1 A at 24 VDC; (2)Carry current: 1 A; (3)Max. operating voltage: 125 VAC, 60 VDC; (4)Max. operating current: 1 A; (5)Min. permissible load - P level (See note): 1 mA at 5 VDC; (6)Power consumption: 230 mW; (7)Ambient temperature operating: -40°C to 70°C.

Features

g6l-1p-5vdc features: (1)Uses 20% less mounting area and 67% less volume in comparison with the G5V-1 relay; (2)Measures just 7.0 (W)x 10.6 (L)x 4.5 (H)mm for surfacemount or 4.1 (H)for through-hole; (3)High dielectric strength: 1,000 VAC between coil and contacts and 750 VAC between contacts of the same polarity; (4)Conforms to FCC Part 68; (5)UL recognized / CSA certified; (6)RoHS Compliant - Use of lead completely eliminated.

Diagrams

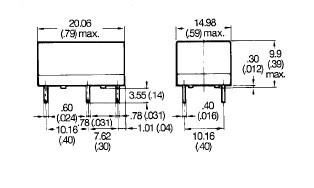

g6l-1p-5vdc pin connection
